PVC Lay Flat Hose
- Standard Duty

Overview

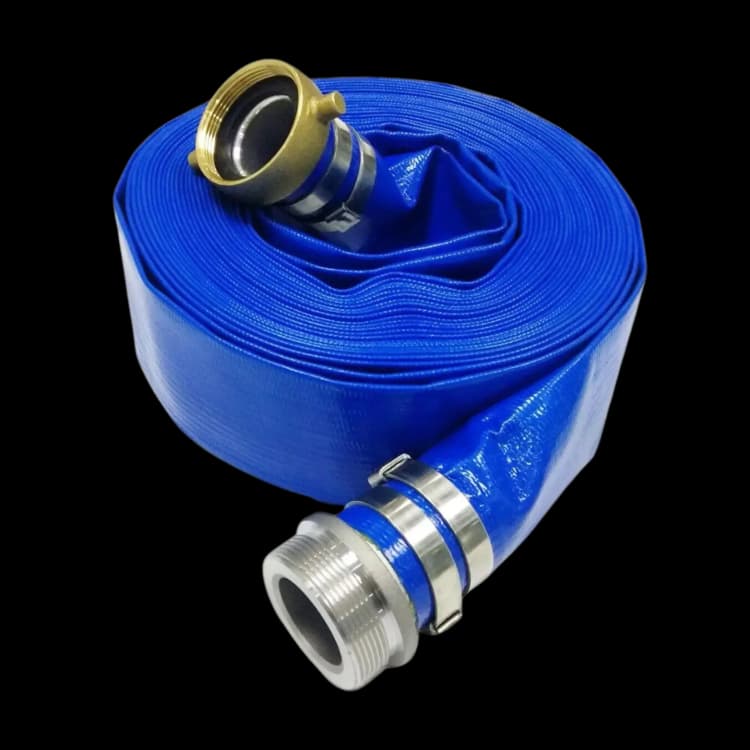

PVC Lay Flat Hose – Standard Duty 4 Bar is a lightweight, flexible water discharge hose made from high-strength PVC material. Commonly referred to as “lay flat” or “flat discharge” hose, this product is designed for intermediate pressure applications up to 4 bar (58 psi). Thanks to its collapsible design and robust construction, it's widely used in agriculture, construction, mining, and industrial water transfer projects.

Pressure Rating:

Working Pressure: Up to 4 bar (58 psi)
Burst Pressure: Typically 3× the working pressure (varies by diameter)

Key Uses & Applications

Irrigation & Agriculture

Suited for watering fields, crops, or orchards
Easily pairs with portable pumps for quick field deployment

Construction & Site Dewatering

Ideal for draining flood areas or pumping out water from excavation sites
Lightweight design makes it easy to move across a jobsite

Industrial Water Transfer

Transfers water and non-corrosive fluids in factories, processing plants, or shipyards
Hose lies flat when not in use, saving storage space

Temporary Water Supply Lines

Can serve as a temporary line for distributing water at outdoor events, fairs, or emergency relief efforts

Product Highlights

Lightweight & Portable

Collapsible flat profile for efficient storage and transportation
Minimizes space requirements compared to rigid or braided hoses

Durable PVC Construction

Standard-duty PVC layers reinforced with synthetic yarn for enhanced burst strength
Resistant to kinking, abrasion, and mild chemicals in typical water transfer operations

Easy Deployment & Recoil

Lays flat on the ground for easy pumping without frequent repositioning
Quick to roll up after use, ensuring minimal downtime

Smooth Inner Surface

Minimizes friction losses to maintain steady flow rates
Reduces residue buildup and simplifies cleaning

Technical Details

Material

PVC with synthetic textile reinforcement

Diameter Range

Commonly from 1" (25 mm) up to 8" (200 mm); exact range may vary by manufacturer

Wall Thickness

Varies by diameter and pressure rating; standard duty construction ensures consistent 4 bar performance

Length Rolls

Typically in 50 m (164 ft) or 100 m (328 ft) coils

Temperature Range

−10°C to +60°C (14°F to 140°F), depending on usage and fluid

Color

Commonly blue, although other colors (red, yellow, green) may be available

Technical Specifications

NOMINAL SIZE		INSIDE DIAMETER		WALL THICKNESS		LENGTH		WORKING PRESSURE
mm	inch	mm	inch	mm	inch	Mtr	Feet	Kg/cm²	Psi
50	2	52	2.047	1.4	0.055	100	300	4.5	65
75	3	77	3.031	1.5	0.0549	100	300	4	55
100	4	103	4.055	1.5	0.059	100	300	4	55
150	6	153	6.024	1.8	0.071	100	300	3	45
200	8	205	8.15	2.1	0.083	100	300	3	45
250	10	250.2	10.197	2.3	0.091	50	100	2	30
300	12	302	12.126	2.5	0.098	50	100	2	30
