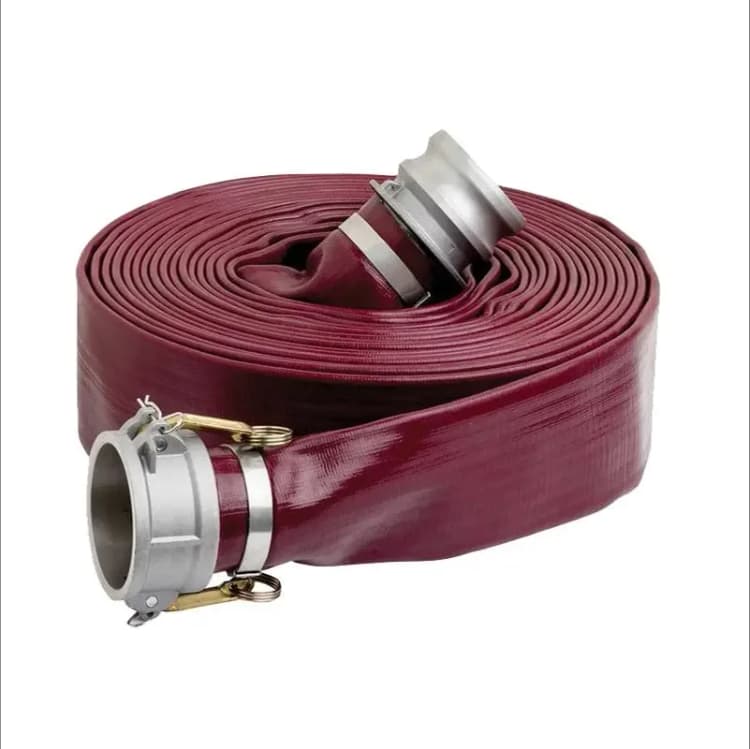

PVC Lay Flat Hose
- Heavy Duty 10 Bar

Overview

PVC Lay Flat Hose – Heavy Duty 10 bar is a robust, flexible water discharge hose engineered for higher-pressure applications compared to standard-duty hoses. Constructed from thick PVC material reinforced with high-tensile synthetic yarn, this heavy-duty lay flat hose can reliably handle pressures up to 10 bar (116 psi). Due to its durable yet collapsible design, it's widely used in professional irrigation, construction, mining, industrial, and municipal water transfer tasks where a more demanding water pressure rating is required.

Key Uses & Applications

High-Pressure Irrigation & Agriculture

Ideal for extended irrigation runs or higher-pressure pumping systems
Handles challenging on-farm pumping where strong water pressure is needed

Construction & Heavy-Duty Dewatering

Drains excavation sites with substantial water volumes at higher pressure
Rugged construction holds up under tough site conditions and frequent movement

Industrial & Mining Operations

Suited for transferring water or slurry in demanding industrial environments
Reinforced design resists abrasion and handles intermittent pressure surges

Municipal & Utility Projects

Supports emergency water distribution lines or firefighting support
Ideal for more rigorous municipal cleanup, flood control, or hydrant usage

Product Highlights

Enhanced Pressure Rating

Withstands working pressures up to 10 bar (116 psi), offering a step up from standard-duty hoses

Reinforced PVC Construction

Multiple layers of robust PVC with high-tensile polyester yarn reinforcement
Designed to resist elongation or deformation under heavy water flow

Flexible & Collapsible

Hose can be rolled flat for compact transport and storage
Lies flat on ground during operation; minimal kinking even around corners

Abrasion & UV Resistance

Heavy-duty PVC outer coating endures dragging, rough surfaces, and moderate exposure to sunlight

Smooth Inner Lining

Maintains consistent, efficient flow rates and minimizes friction losses
Resists buildup of algae or mineral deposits, aiding easy maintenance

Technical Details

Material

Premium PVC with high-tensile polyester reinforcement

Diameter Range

Commonly from 1.5" (38 mm) up to 8" (200 mm); availability may differ by manufacturer

Wall Thickness

Heavier gauge PVC layers compared to standard-duty hoses, ensuring stable performance at 10 bar

Length Rolls

Typically 50 m (164 ft) or 100 m (328 ft) rolls, other lengths on request

Temperature Range

-10°C to +60°C (14°F to 140°F), subject to fluid and working environment

Color

Often red or blue (heavy-duty lines frequently come in red, though colors can vary)

Technical Specifications

NOMINAL SIZE		INSIDE DIAMETER		WALL THICKNESS		LENGTH		WORKING PRESSURE
mm	inch	mm	inch	mm	inch	Mtr	Feet	Kg/cm²	Psi
50	2	53.1	2.09	2	0.079	100	300	10.5	150
75	3	78.5	3.09	2.3	0.09	100	300	10.5	150
100	4	105	4.134	2.5	0.098	100	300	10	142
150	6	157	6.0181	2.7	0.0106	100	300	8	100
200	8	207	8.149	3	0.118	100	300	7	85
