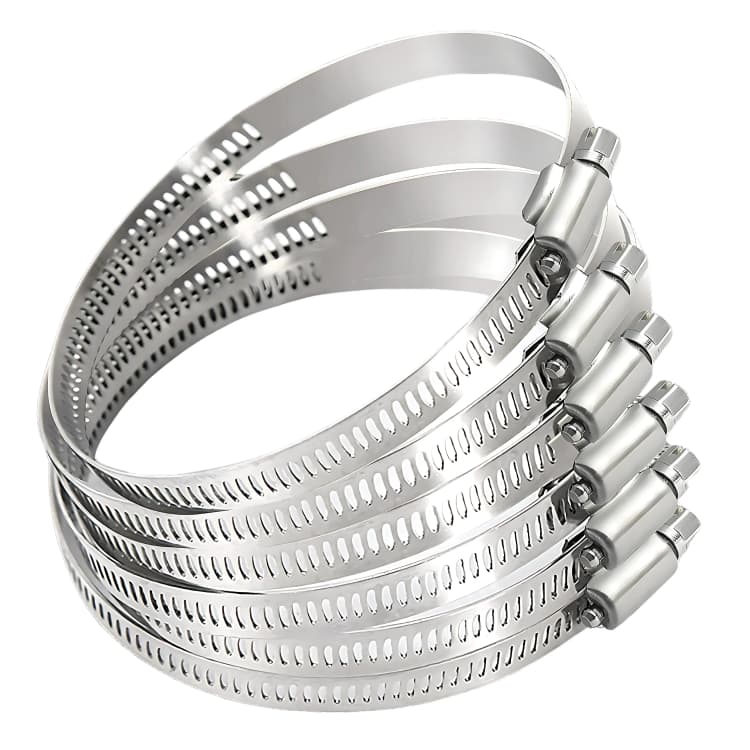

Hose Clips

Overview

Founded in 1921, Jubilee® Clips pioneered the worm-drive hose clamp—obtaining the first-ever patent for this design. Manufactured in Great Britain ever since, the Jubilee® brand name remains a registered trademark worldwide, synonymous with quality and reliability in clamping solutions. Over the decades, the company has expanded its product line beyond the original worm-drive clip, offering an extensive array of clamps and strapping systems to meet diverse industry needs.

Comprehensive Clamping Solutions

Two Ear 'O' Clips & Jubilee® Juniors

Two Ear 'O' Clips: Small, crimp-style clamps ideal for lightweight hoses or tubing
Jubilee® Juniors (Nut & Bolt Clamps): A more compact alternative for tight spaces, delivering consistent compression

High Torque & Super Clamps

Built for heavy-duty performance when extra clamping force is required
Often used in demanding applications, such as industrial machinery or high-pressure hoses

Multiband Systems

Versatile banding solutions for on-site customization
Ideal for securing large-diameter or irregular-shaped objects where conventional clamps won't fit

Original Range: Mild Steel Zinc Protected

Automotive & Aftermarket

Fuel lines
Coolant hoses
Air intake connections

Agricultural

Irrigation systems
Farm machinery
General fluid transfer

Industrial & Pneumatic

Hydraulic lines
Compressed air hoses
Light chemical handling

Hardware & Construction

General plumbing
HVAC duct connections
DIY projects

Specifications Table

PART NO.	BS NO.	ADJUSTMENT (MM)	ADJUSTMENT (INCHES)	BAND WIDTH (MM)	BAND THICKNESS (MM)	REC. TORQUE (NM)	MAX TORQUE (NM)	MAX PRESSURE (PSI)
000MS	12	9.5-12	3.8-4.8	9.9	0.762	3.4	4.5	203
M00MS	16	11–16	1.2-5.8	9.9	0.762	3.4	4.5	203
00MS	20	13–20	1.2-8.4	9.9	0.762	3.4	4.5	203
0MS	22	16–22	5.8-7.8	13	0.914	4.2	5.6	203
0XMS	25	18–25	3.4-1	13	0.914	4.2	5.6	203
1AMS	30	22–30	7.5-11.8	13	0.914	5.1	6.8	203
1MS	35	26–35	10-14	13	0.914	5.1	6.8	102
1XMS	40	30–40	11.8-15.8	13	0.914	5.1	6.8	102
1MMS	45	35–45	14-18	13	0.914	5.1	6.8	102
2AMS	50	35–50	13-8.2	13	0.914	5.9	7.9	102
2MS	55	40–55	15.8-21.8	13	0.914	5.9	7.9	102
2XMS	60	45–60	13.4-3.8	13	0.914	5.9	7.9	102
3MS	70	55–70	21.8-23.4	13	0.914	6.7	9	44
3XMS	80	60–80	23.4-31.4	13	0.914	6.7	9	44
4MS	90	70–90	23.4-31.4	13	0.914	6.7	9	44
4XMS	100	80–100	31.4-31.4	13	0.914	6.7	9	44
5MS	120	100–120	38.4-43.4	13	0.914	6.7	9	44
6XMS	140	120–150	43.4-57.8	13	0.914	5.9	7.9	18
7MS	165	135–165	53.1-65.0	13	0.914	5.9	7.9	18
8MS	216	184–216	72.4-85.0	13	0.914	5.9	7.9	18
